2027 Cub Cadet PRO X 434

2027 Cub Cadet PRO X 434

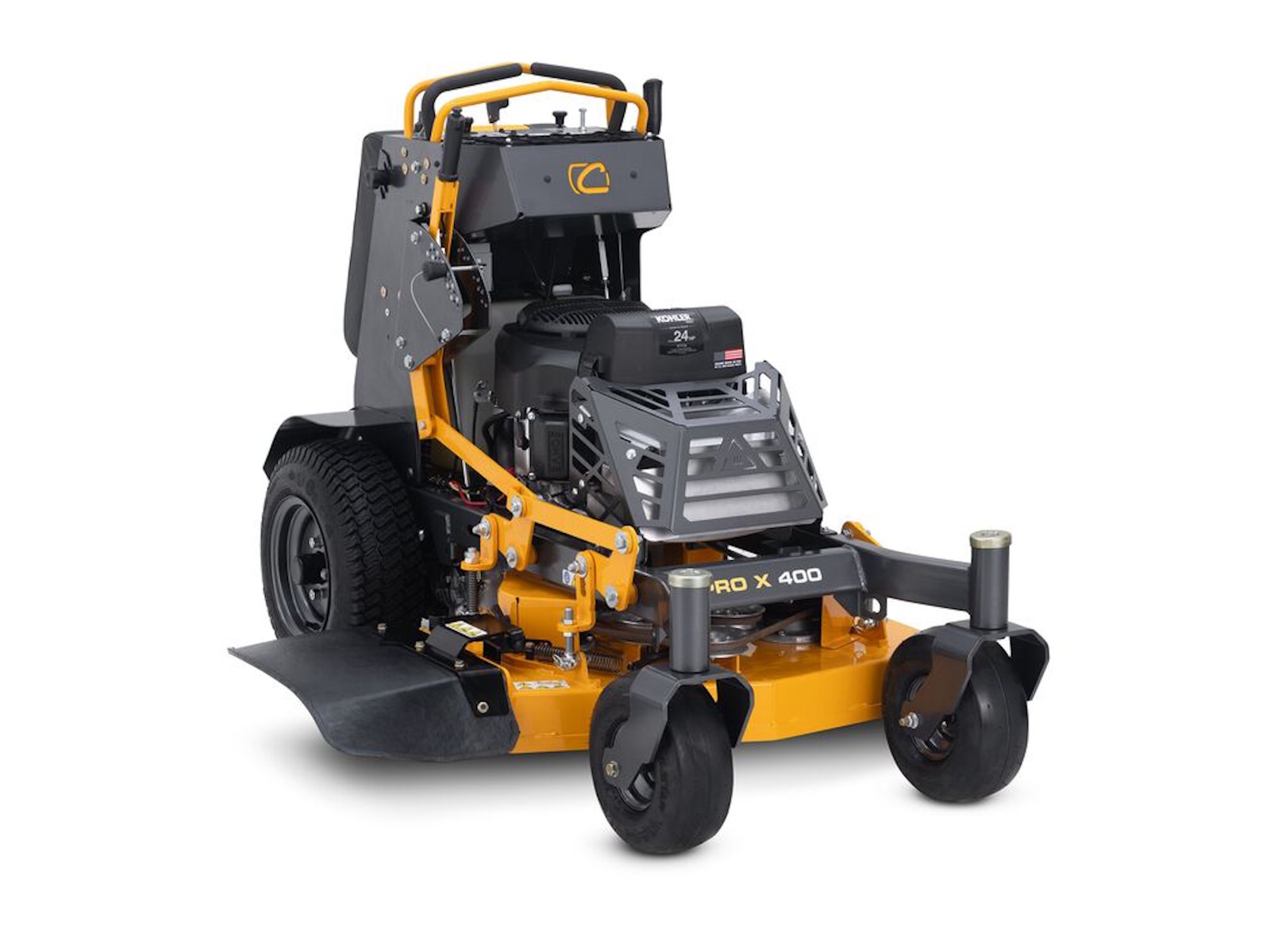

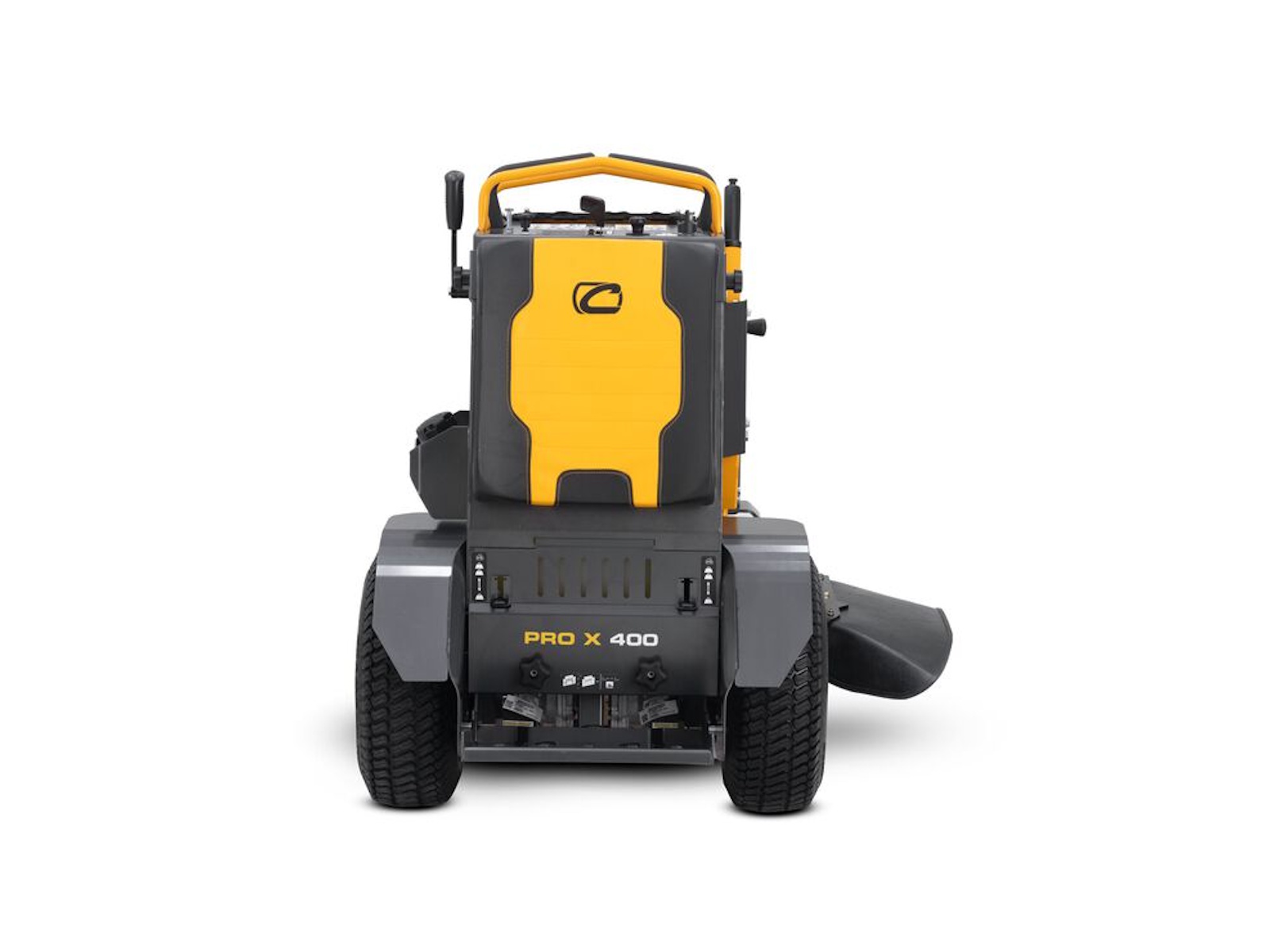

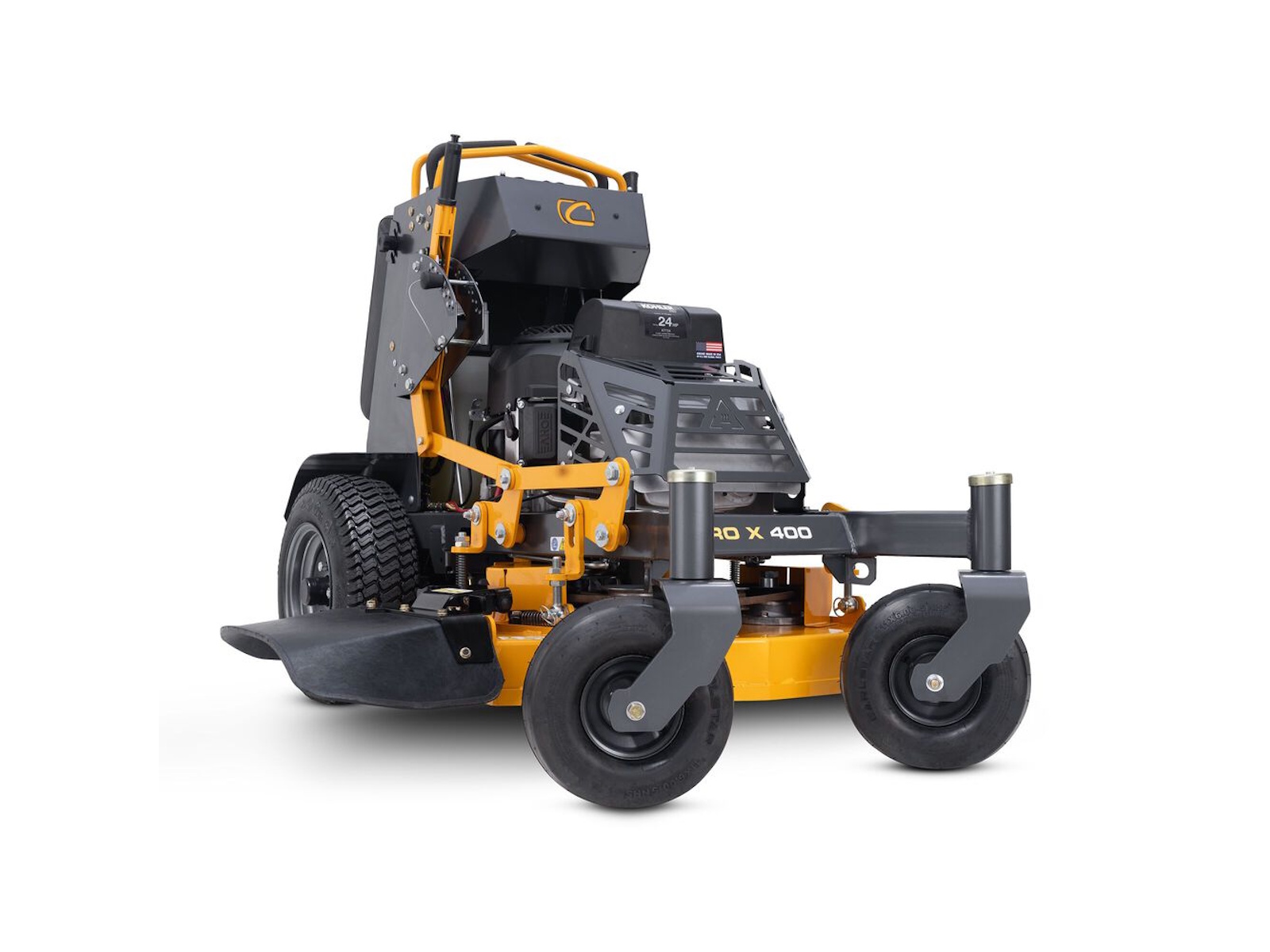

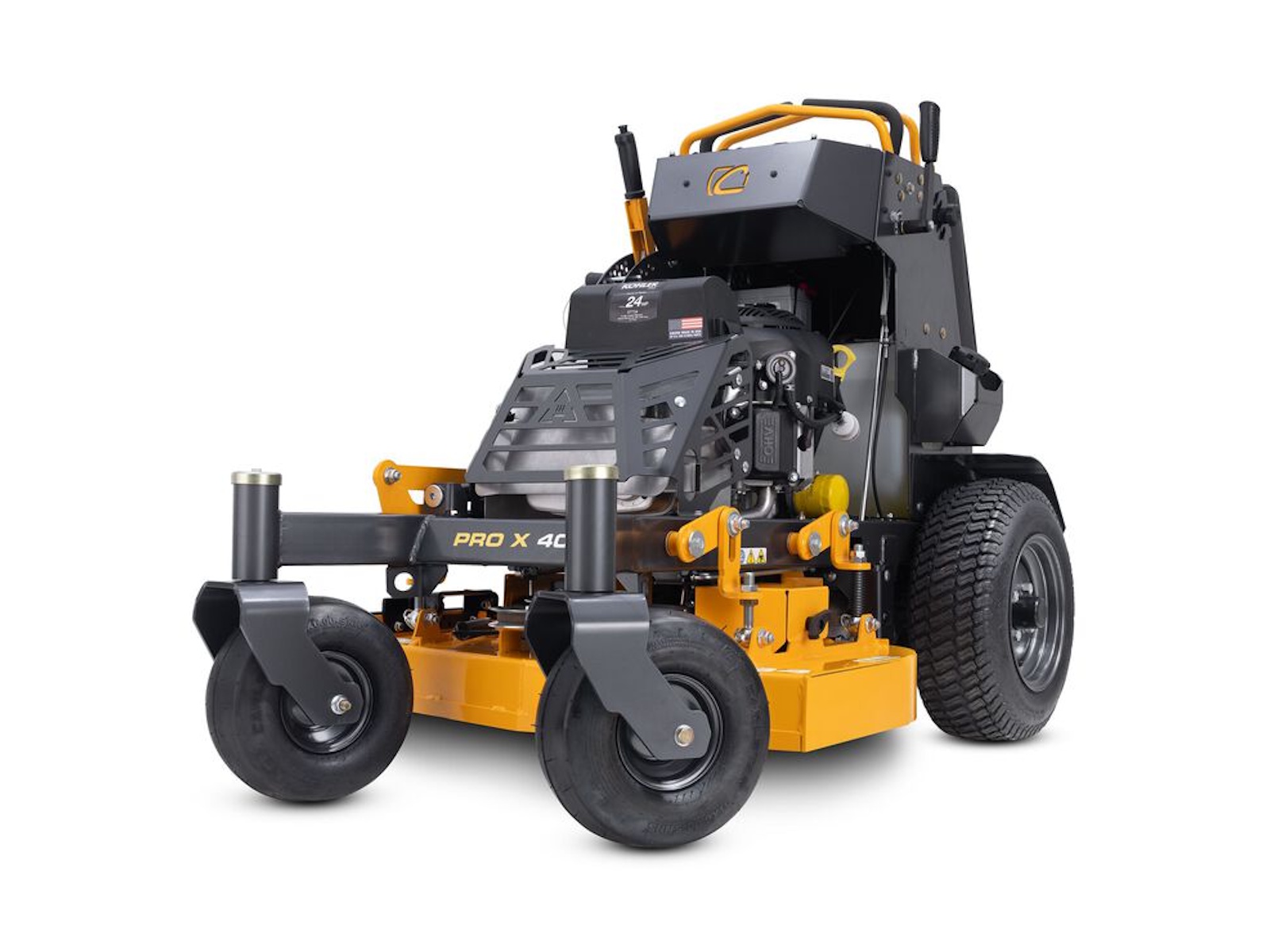

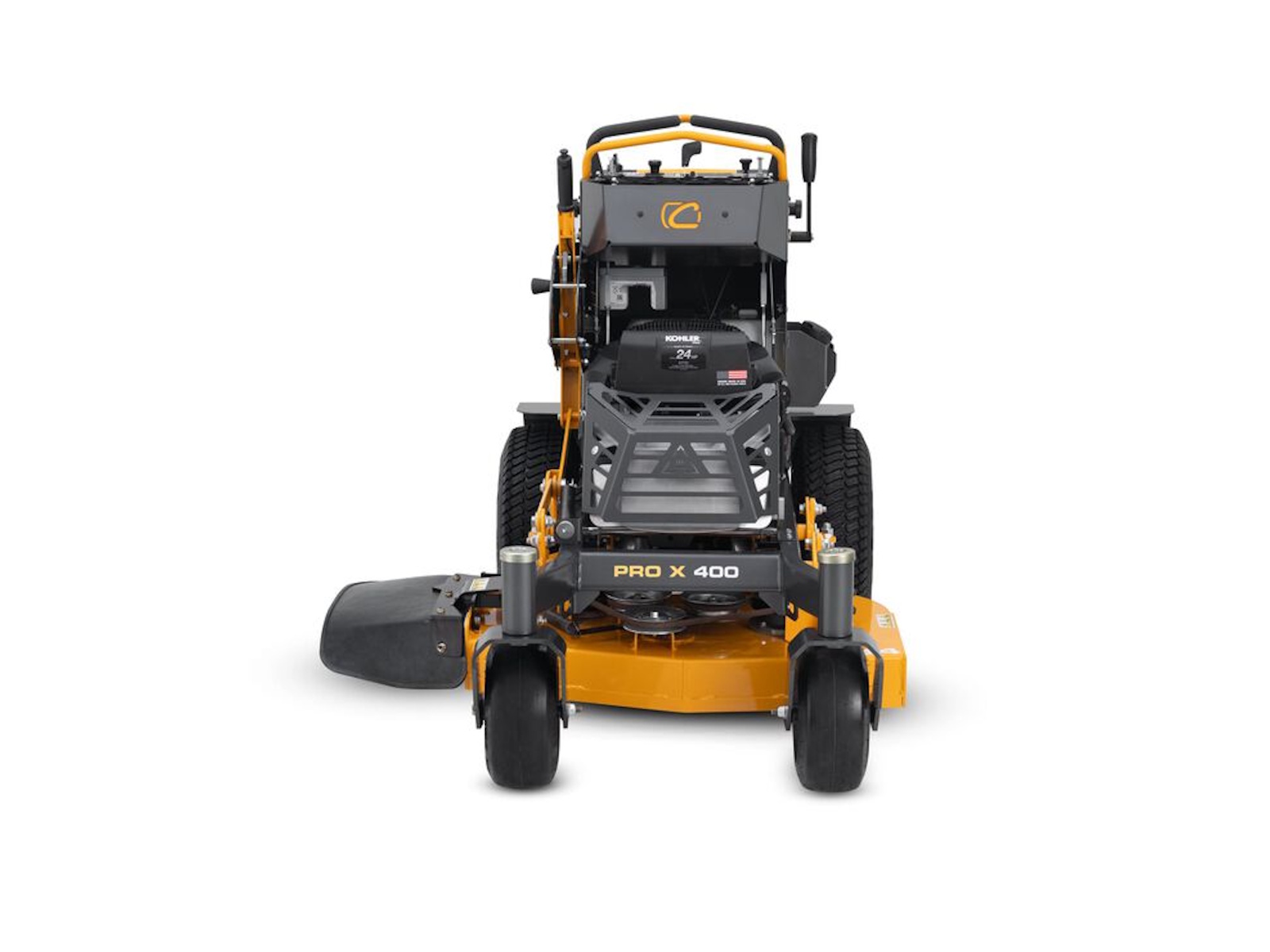

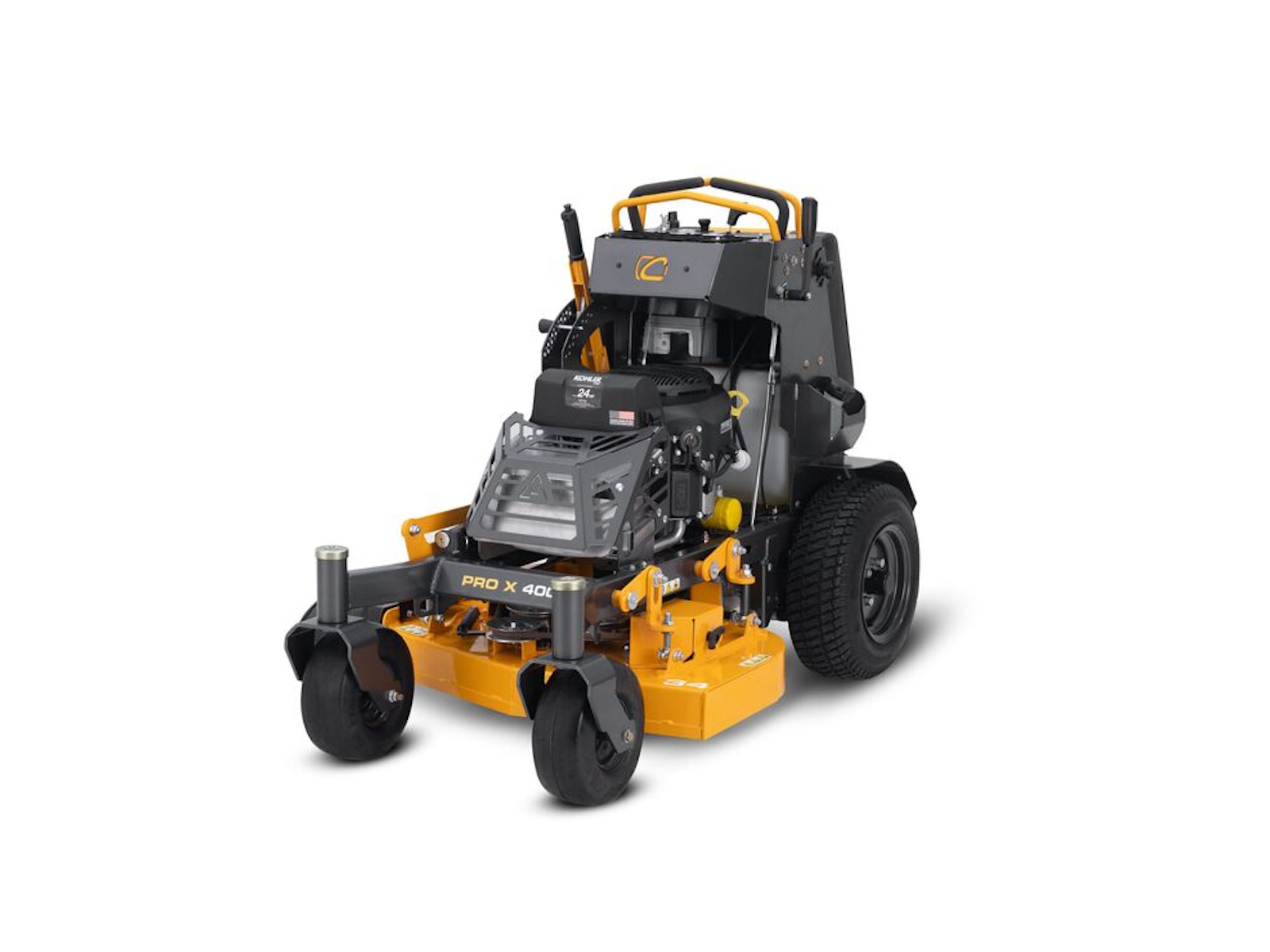

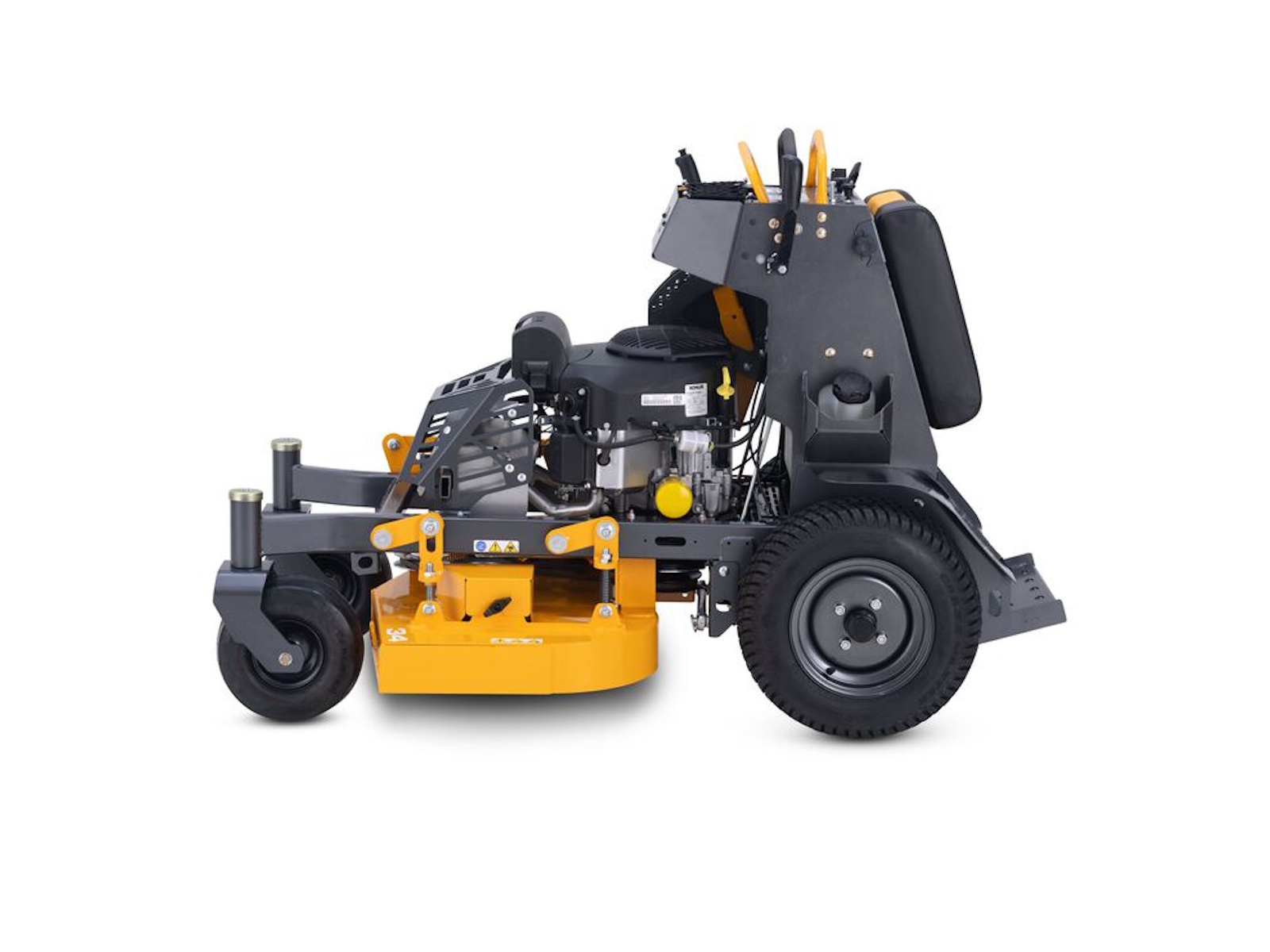

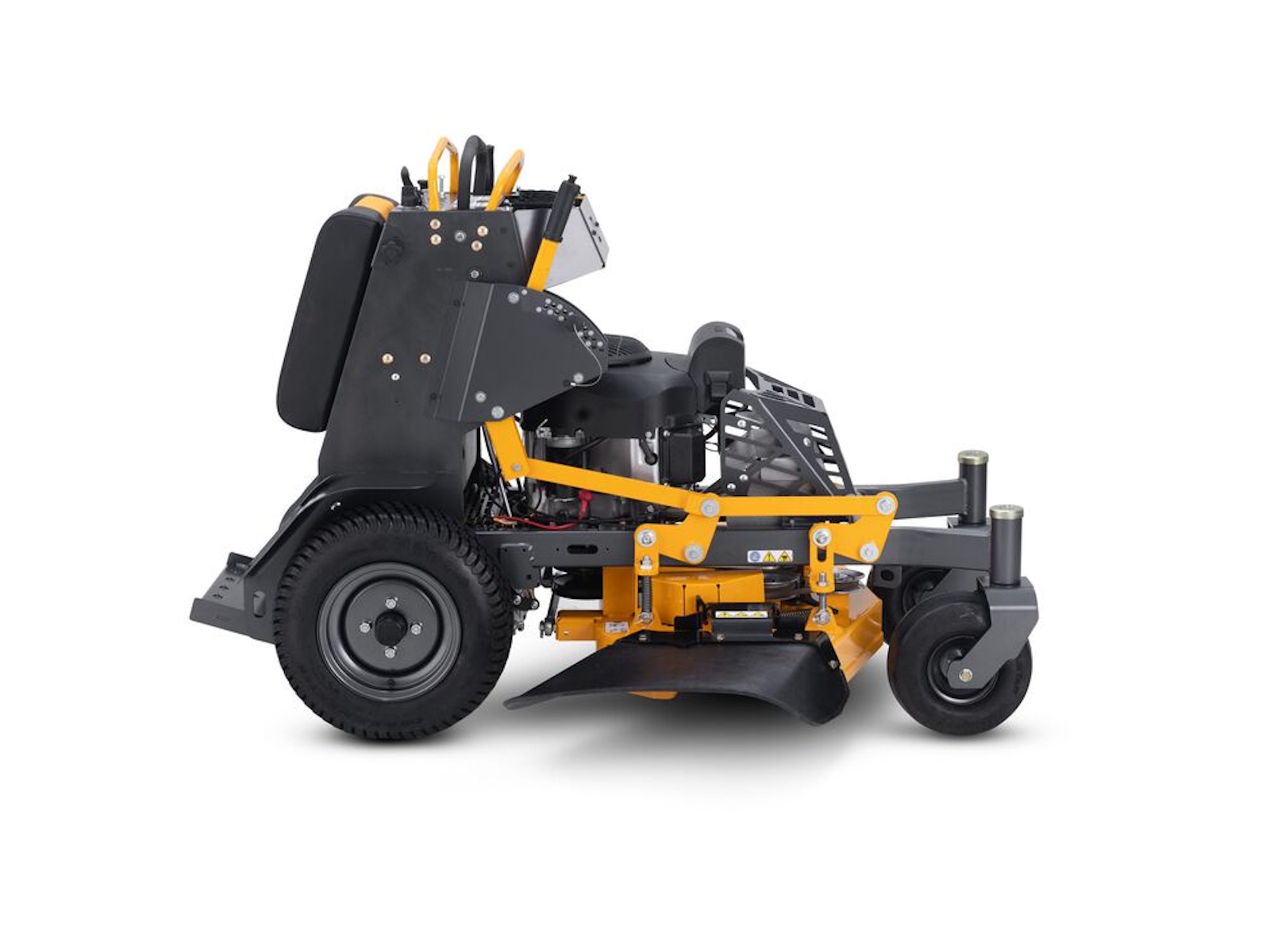

Stand up to tough terrain with the Cub Cadet® PRO X 434 34-in. 24HP* Commercial Stand-On Lawn Mower featuring a commercial-grade 24HP* Kohler® KT-PRO (747cc) engine. Maneuver through gates and tight spaces with a fully fabricated 34-inch 10-gauge steel commercial deck with 7-gauge bottom reinforcement. Power past obstacles and uneven terrain with a 1.5-in. x 3-in. tubular steel frame designed for durability. Backed by a 4-year limited, 800-hour warranty and a nationwide network of Cub Cadet Dealers.

• Powered by a commercial-grade 24 HP* Kohler® KT-PRO (747cc) engine
• Maneuver through gates and other tight spots with a fully fabricated 34-in. 10-gauge steel commercial deck with 7-gauge bottom reinforcement.
• Adjust tension and glide comfortably through uneven terrain thanks to a large, fully adjustable suspension platform.
• High performance commercial Hydro-Gear® ZT-3100 transmission delivers quick response to the drive wheels and smooth control for cutting up to 7mph.
• Stand up to rough terrain with a 1.5-in. x 3-in. tubular steel frame designed for durability

Features May Include:

Options:

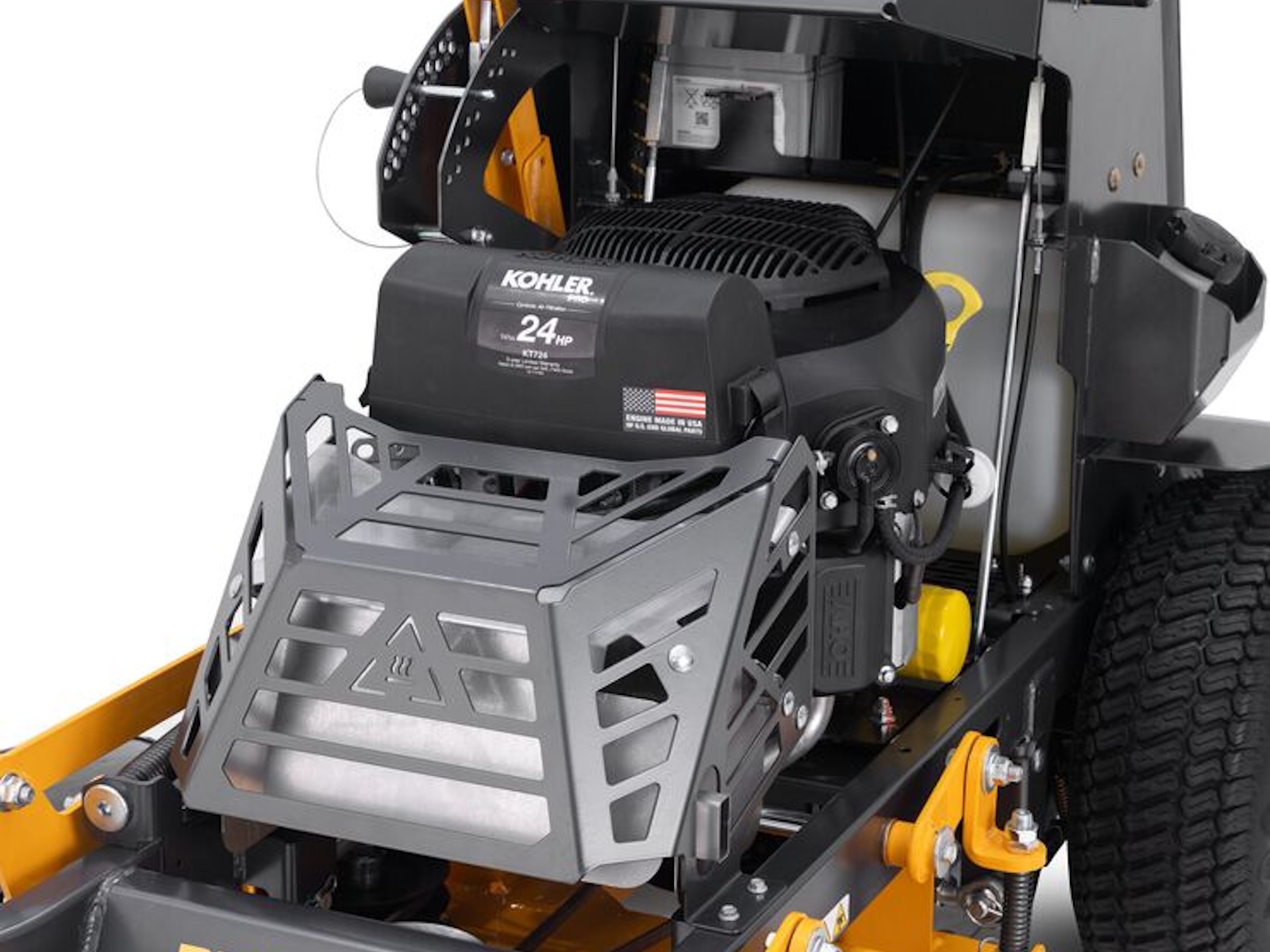

Engine

• Engine Brand: Kohler®

• Engine Model: 7000 Series PRO

• Engine Model Number: KT724

• Engine Displacement: 747cc

• Engine Output: 24HP

• Starter Type: Electronic

• Fuel Tank Capacity: 5.4 gal. US (20.4 L)

• Cylinders: Twin

• Engine Start: Ignition Key

• Engine Oil Capacity: 2.0 qt. US (1.89 L)

• Lubrication: Fully pressurized

• Charging System: 12 amp regulated

• Fuel Gauge: No

• Choke: Separate Choke

• Air Filter: High Density

• Oil Filter: Yes

• Fuel Delivery: Carburetor

Drive System

• Transmission: Hydro Gear 3100

• Forward Speed: 7.0 mph / 11.2 km/h

• Reverse Speed: 3.5 mph / 5.6 km/h

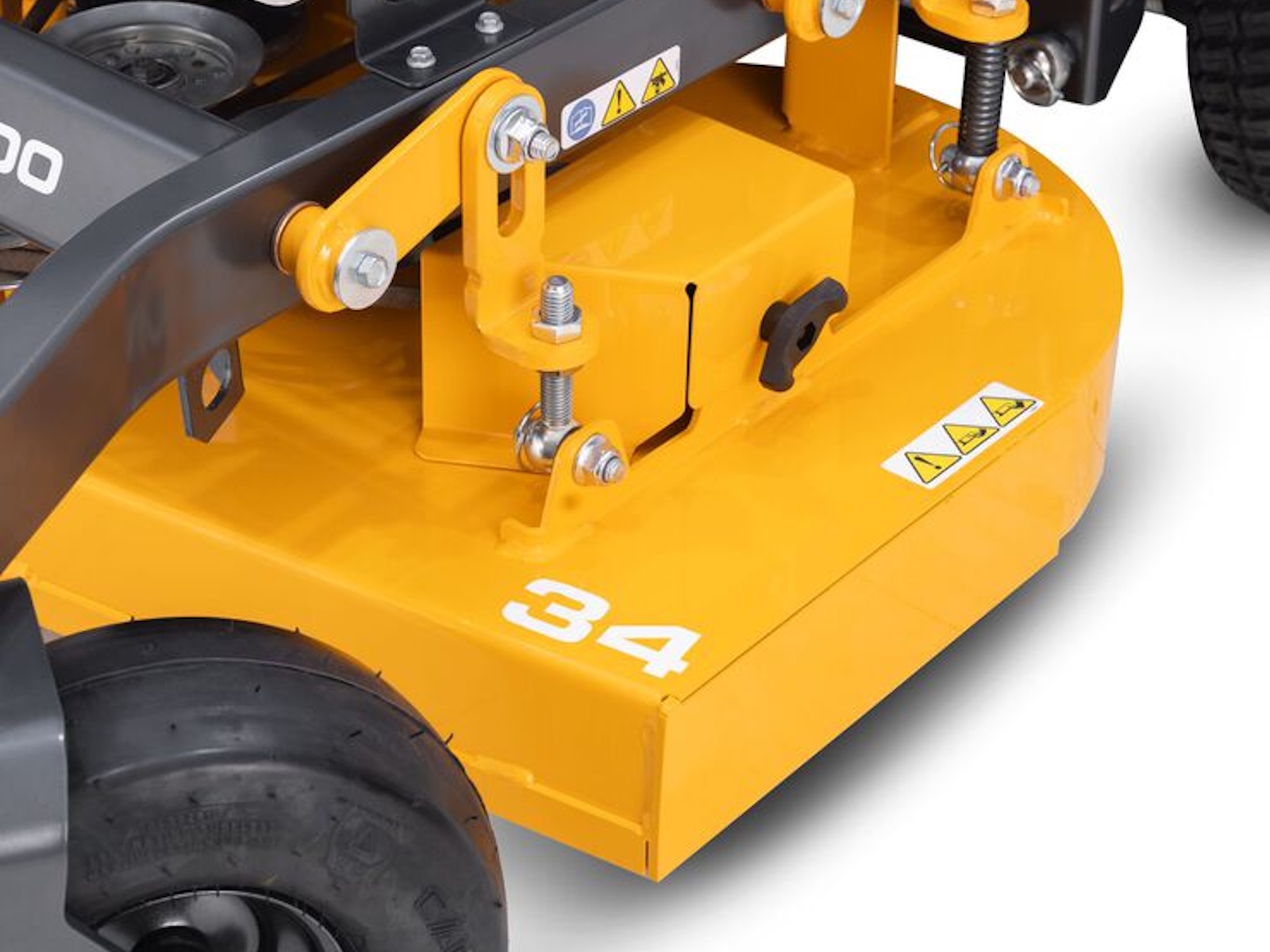

Cutting Deck

• Deck Cutting Width: 34 in

• Deck Engagement (PTO): Electric

• Deck Construction: 10 ga shell w/ 7 ga top & bottom reinforcement

• Spindle Construction: 5” sealed cast aluminum housing (maintenance-free)

• Deck Lift: Hand lever adjusting spring lift, pin selector for height

• Cutting Height Range: 1.5"- 4.5"

• Anti-Scalping: N/A

Chassis

• Frame: 1.5" x 3" full-length tube frame

• Front Axle: 1.5" x 3" tube construction

• Front Caster Mount: 3/8" thick steel

• Suspension: None

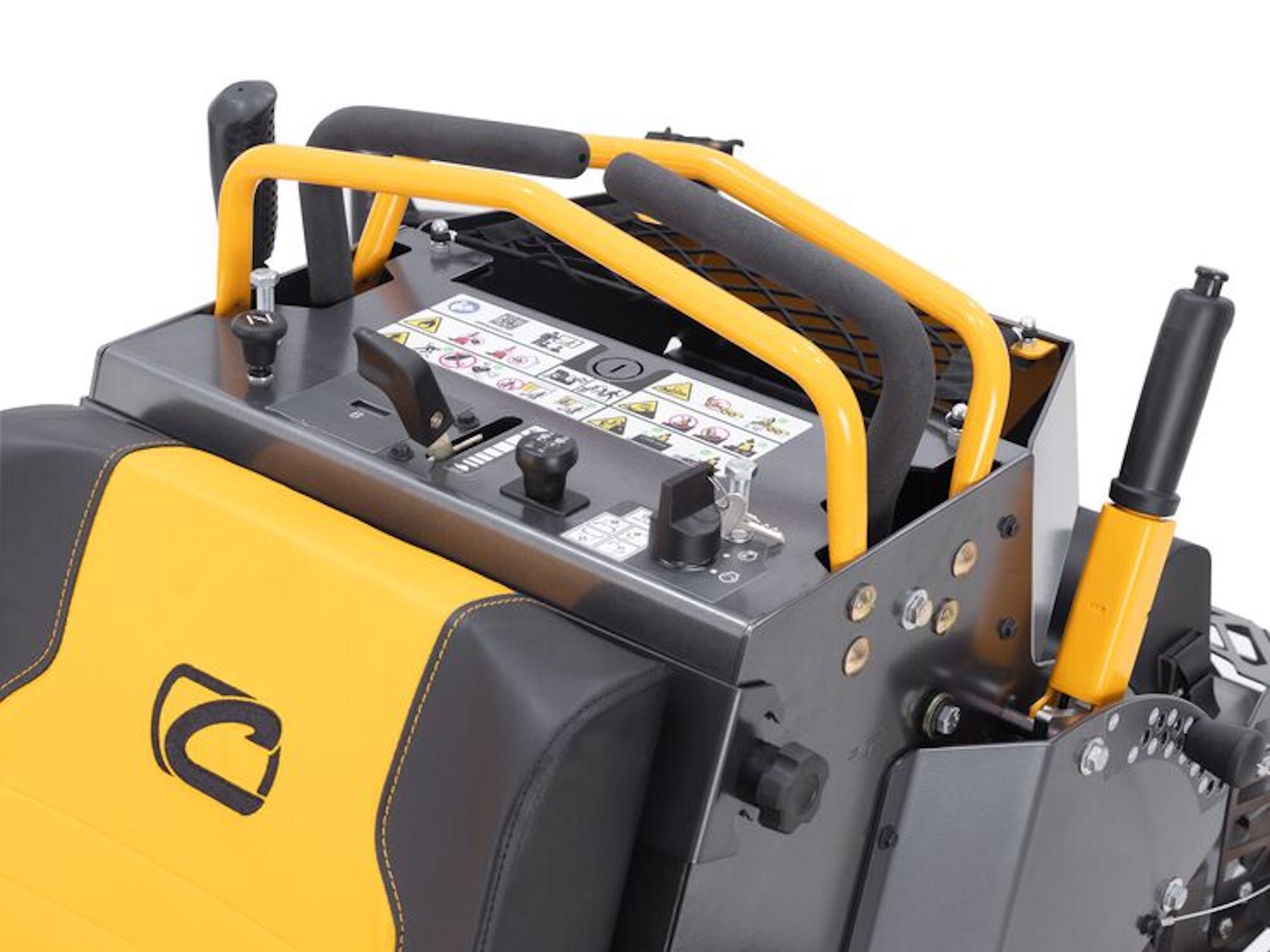

Controls

• Cruise Control: NA

• Brakes: Hand Lever actuated scrub brake

• Steering Control: Lap Bar Steering Control

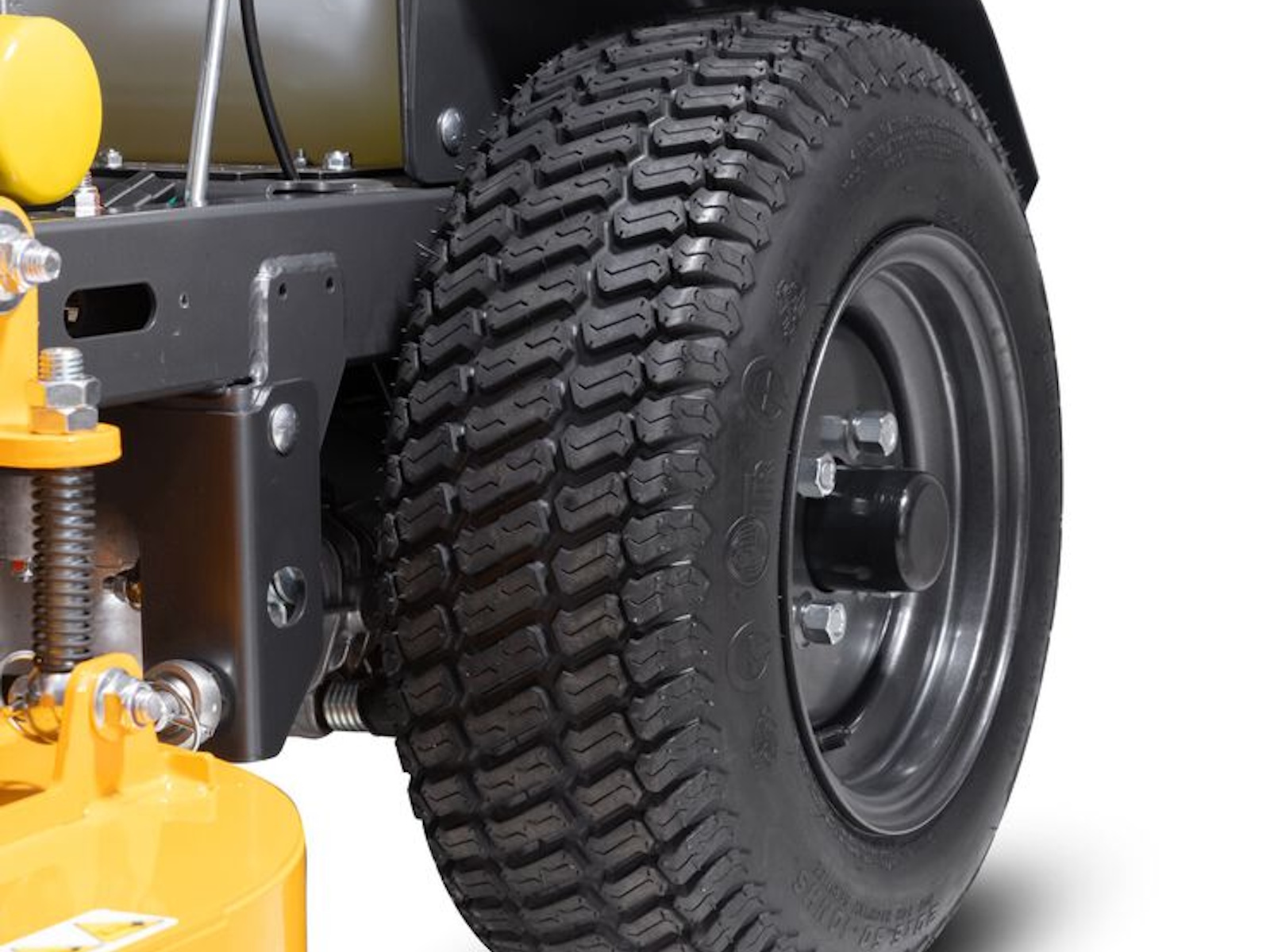

Wheels

• Rear Tires: 20"x 6.5"-10"

• Front Tires: 11" x 6.0"-5"

Additional Specifications

• Hour Meter: Crew Boss

• Model Number: 47RS7WN4A10
